NHC Marine Product Descriptions


Contents
Text Products
Graphical Products
Other TAFB Services

For a quick reference to many of the products listed below, you may download our trifold brochure. (También está disponible en español.)

Tropical Weather Discussion

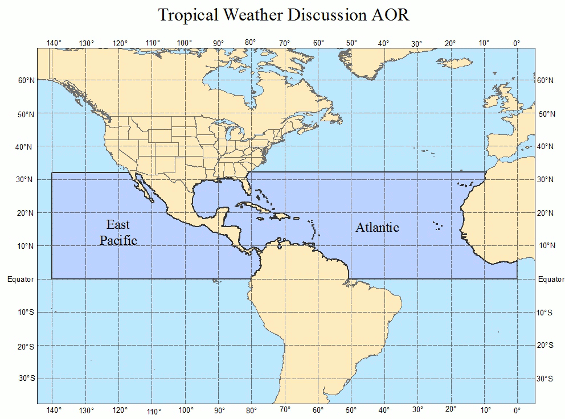

[map of Tropical Weather Discussion Area of Responsibility]

Purpose

The Tropical Weather Discussion describes major synoptic weather features and significant areas of disturbed weather in the tropics. The product is intended to provide current weather information for those who need to know the current state of the atmosphere and expected trends to assist them in their decision making. The product gives significant weather features, areas of disturbed weather, expected trends, the meteorological reasoning behind the forecast, model performance, and in some cases a degree of confidence.

Content

The Tropical Weather Discussion is a narrative explaining the current weather conditions across the tropics and the expected short-term changes. The product is divided into four different sections as outlined below:

  1. SPECIAL FEATURES (event-driven)
    The special features section includes descriptions of hurricanes, tropical storms, tropical depressions, subtropical cyclones, and any other feature of significance that may develop into a tropical or subtropical cyclone. For active tropical cyclones, this section provides the latest advisory data on the system. Associated middle and upper level interactions as well as significant clouds and convection are discussed with each system. This section is omitted if none of these features is present.
  2. TROPICAL WAVES (event-driven)
    This section provides a description of the strength, position, and movement of all tropical waves analyzed on the surface analysis, from east to west. A brief reason for a wave's position is usually given, citing surface observations, upper air time sections, satellite imagery, etc. The associated convection is discussed with each tropical wave as well as any potential impacts to landmasses or marine interests. This section is omitted if there are no tropical waves present.

  3. ITCZ
    In this section, the Intertropical Convergence Zone (ITCZ) is depicted by coordinates from east to west with an outline of all associated convection referenced to the axis, if possible. The ITCZ is depicted based on the following definition: "a zonally elongated axis of surface wind confluence in the tropics, due to confluence of northeasterly and southeasterly trade winds, and/or confluence at the poleward extent of cross-equatorial flow into a near-equatorial 'heat trough' or 'monsoon trough.'"

  4. DISCUSSION
    The discussion section makes reference to middle and upper level features and provides connection to how these features are interacting with or influencing surface features. Convection is outlined with the features as warranted. This section will also provide short-term (up to 48 hours) trends and forecasts of features, especially if they are forecast to strengthen and/or affect landmasses. A discussion of model guidance may also be included. In general, this section is regionalized according to the current weather pattern (i.e. Gulf of Mexico, Caribbean, Western Atlantic, etc.)

Coverage and intensity for convective and non-convective weather is defined as follows:

COVERAGE FOR CONVECTIVE and NON-CONVECTIVE WEATHER:

NumerousWidespread>54%
ScatteredAreas25% - 54%
Widely scatteredLocal/Locally<25%
Isolated No %, implies circumnavigability


COVERAGE FOR SIGNIFICANT CLOUDS:

Clear0
Few1/8 - 2/8
Scattered3/8 - 4/8
Broken5/8 - 7/8
Overcast8/8


INTENSITY OF CONVECTION (based on cloud top temperatures):

Strong< -70°C (summer)< -60°C (winter)
Moderatebetween -45°C and -70°C (summer)between -35°C and -60°C (winter)
Weak> -45°C (summer)> -35°C (winter)

Coverage

The National Hurricane Center issues two Tropical Weather Discussions, as shown below:

  1. Atlantic
    From the equator to 32°N west of the prime meridian including the Caribbean Sea, Gulf of Mexico, and adjacent land areas. These areas include the southeast United States [especially Florida], Mexico, Central America, northern South America, and western Africa
  2. East Pacific
    From the equator to 32°N east of 140°W including coastal areas of Mexico, and Central and South America.

Issuance/Transmission

  WMO NWWS
Atlantic AXNT20 KNHC MIATWDAT
East Pacific AXPZ20 KNHC MIATWDEP


  Issuance Time
MIATWDAT 105 AM EST
(205 AM EDT)
705 AM EST
(805 AM EDT)
105 PM EST
(205 PM EDT)
705 PM EST
805 PM EDT)
MIATWDEP 0405 UTC 1005 UTC 1605 UTC 2205 UTC

See table for the latest Tropical Weather Discussion


High Seas Forecasts

[map of High Seas Forecast Area of Responsibility]

Purpose

The world's oceans and seas are divided up into 16 separate regions known as "METAREAS" with different nations having responsibility for providing high seas marine forecasts for those waters. These high seas forecasts are used mainly by large transoceanic vessels but can also be used by smaller vessels or those on shorter voyages. The U.S. National Weather Service (through the National Hurricane Center, the Ocean Prediction Center, and the Honolulu Weather Forecast Office) has the responsibility to provide high seas marine forecasts for METAREAS IV, XII, and XVI, which cover most of the North Atlantic Ocean, North Pacific Ocean, and Southeast Pacific Ocean.

Content

The National Hurricane Center issues three High Seas Forecasts for parts of METAREAS IV and XII and all of METAREA XVI. Each product is updated every 6 hours and includes a description of winds and waves for the current time (a nowcast) and a 24- and 48- hour forecast of the winds and waves, using a 20 knot threshold for the wind and an 8 feet threshold for the seas. Positions and intensities are also given for tropical cyclones out to the 120-hour forecast. Intermediate forecast times are given for rapidly changing weather events. The High Seas products also include updated descriptions of convection, particularly along the ITCZ. The products include marine warnings for gale, storm, hurricane force winds, and tropical cyclone-related conditions and can also include information on reduced visibility and other marine hazards.

Coverage

  1. Atlantic Ocean (from 7°N to 31°N west of 35°W, including the Caribbean Sea and the Gulf of Mexico)
  2. Northeast Pacific Ocean (from Equator to 30°N east of 140°W and from Equator to 3.4°S east of 120°W)
  3. Southeast Pacific Ocean (from 3.4°S to 18.5°S east of 120°W )

Issuance/Transmission

High seas products are transmitted under World Meteorological Organization (WMO) and NOAA Weather Wire Service (NWWS) headers as shown in the following table (alternate headers are for high seas products issued by the Ocean Prediction Center, which append the forecasts of the National Hurricane Center):

  Primary Headers Alternate Headers
  WMO NWWS WMO NWWS
Atlantic FZNT02 KNHC MIAHSFAT2 FZNT01 KWBC NFDHSFAT1
Northeast Pacific FZPN03 KNHC MIAHSFEP2 FZPN01 KWBC NFDHSFEPI
Southeast Pacific FZPN04 KNHC MIAHSFEP3

High seas products are issued on a regular six hourly schedule as shown below:

  Issuance Time in UTC
MIAHSFAT2 0430 1030 1630 2230
MIAHSFEP2 0430 1030 1630 2230
MIAHSFEP3 0515 1115 1715 2315

Alternate headers for the Atlantic and Northeast Pacific Forecasts are where TAFB forecasts are appended to High Seas Forecasts of the Ocean Prediction Center. In addition, Atlantic high seas products are transmitted by radiofax.

See table for the latest High Seas Forecast


Offshore Waters Forecasts

Purpose

The Tropical Analysis and Forecast Branch (TAFB) of the National Hurricane Center (NHC) provides forecast and warning information to mariners who travel on the oceanic waters adjacent to the U.S. and its territorial coastal waters in the Gulf of Mexico, Caribbean Sea, and portions of the tropical and subtropical North Atlantic Ocean. The primary alphanumeric product issued by the NHC/TAFB for this purpose is the Offshore Waters Forecast, serving users who operate from the coastal waters out several hundred nautical miles from shore. The Offshore Waters Forecast complements the higher resolution Coastal Waters Forecast produced by local National Weather Service forecast offices and cover the U.S. territorial waters from the coast out to 60 nm offshore.

Content

The Offshore Waters Forecasts cover the Gulf of Mexico, Caribbean Sea, and portions of the Atlantic Ocean south of 31°North and west of 55° West. This area is divided into 32 zones designed in part to take into account the regional marine climatology. The configuration of the Offshore Waters Marine zones is shown on the map below:

[map of Offshore Zones Forecast areas of responsibility]

Coverage

There are two Offshore Waters Forecast provided by the NHC/TAFB. The MIAOFFNT3 (WMO header FZNT23 KNHC) covers the Caribbean Sea, and portions of the Atlantic Ocean south of 31° North and west of 55° West. The MIAOFFNT4 (WMO header FZNT24 KNHC) encompasses the Gulf of Mexico.

These Offshore Waters Forecasts provide mariners with a general overview of large scale environmental marine conditions out five days, to include winds, seas, and major weather impacts. Marine warnings such as gale warnings or warnings for tropical storms or hurricanes will be headlined for each affected zone through the first 36 hours of the forecast period. In addition, brief, plain-language synopses are included in the forecast for the Gulf of Mexico, the Caribbean Sea and Tropical Atlantic, and the Southwest North Atlantic areas.

Winds represent predominant conditions at 10 meters above the surface of the water. Wind direction is described by the eight points of the compass.

Sea state is described in terms of "significant wave height" which is defined in the NWS Glossary as .the mean or average height of the highest one third of all waves in a swell train or in a wave generating region. It approximates the value an experienced observer would report if visually estimating sea height.. Seas will typically be expressed in terms of a range (e.g. 2 to 4 ft). This is to represent uncertainty in the forecast, especially considering the large areas of each marine zone. In fact, it is important to emphasize that there is a broad spectrum of wave heights at any given time in any part of the ocean, and individual wave heights may be twice the significant wave height. In addition to significant wave height, dominant swell and direction are described as needed.

The Offshore Waters Forecast also includes weather impacts whenever they are expected to pose a danger to navigation. This may be in the form of widespread areas of fog, smoke, or volcanic ash that limit visibility, or large clusters of moderate to strong thunderstorms.

Marine Zone Names and Universal Geographic Codes (UGC's)

Offshore Marine Zones

UGC Offshore Marine Zone Name
AMZ011 Caribbean N of 18N W of 85W including Yucatan Channel
AMZ013 Caribbean N of 18N between 76W and 85W including the Cayman Basin
AMZ015 Caribbean approaches to the Windward Passage>
AMZ017 Gulf of Honduras
AMZ019 Caribbean from 15N to 18N between 80W and 85W
AMZ021 Caribbean from 15N to 18N between 72W and 80W
AMZ023 Caribbean N of 15N between 64W and 72W
AMZ025 Offshore Waters Leeward Islands
AMZ027 Tropical Atlantic from 15N to 19N between 55W and 60W
AMZ029 W Central Caribbean from 11N to 15N W of 80W
AMZ031 Caribbean from 11N to 15N between 72W and 80W including Colombia Basin
AMZ033 Caribbean S of 15N between 64W and 72W including Venezuela Basin
AMZ035 Offshore waters Windward Islands including Trinidad and Tobago
AMZ037 Tropical Atlantic from 07N to 15N between 55W and 60W
AMZ039 Southwest Caribbean S of 11N including approaches to the Panama Canal
AMZ111 Atlantic from 27N to 31N W of 77W
AMZ113 iAtlantic from 27N to 31N between 70W and 77W
AMZ115 Atlantic from 27N to 31N between 65W and 70W
AMZ117 Bahamas N of 22N including the Cay Sal Bank
AMZ119 Atlantic from 22N to 27N E of Bahamas to 70W
AMZ121 Atlanticfrom 22N to 27N between 65W and 70W
AMZ123 Atlantic S of 22N W of 70W including approaches to the Windward Passage
AMZ125 Atlantic S of 22N between 65W and 70W including Puerto Rico Trench
AMZ127 Tropical N Atlantic from 15N to 19N between 55W and 60W
GMZ011 NW Gulf including Stetson Bank
GMZ013 N Central Gulf including Flower Garden Banks Marine Sanctuary
GMZ015 NE Gulf N of 25N E of 87W
GMZ017 W Central Gulf from 22N to 26N W of 94W
GMZ019 Central Gulf from 22N to 26N between 87W and 94W
GMZ021 Gulf from 22N to 25N E of 87W including Straits of Florida
GMZ023 SW Gulf S of 22N W of 94W
GMZ025 E Bay of Campeche including Campeche Bank

Although not technically marine zones, the Synopsis paragraphs also have assigned UGC's as shown below:

Synopses

UGC Synopsis Name
AMZ001

Synopsis for the Caribbean and Tropical N Atlantic from 07N to 19N between 55W and 64W

AMZ101

Synopsis for the SW N Atlantic including the Bahamas

GMZ001

Synopsis for the Gulf of Mexico

Issuance/Transmission

Offshore waters products are transmitted under World Meteorological Organization (WMO) and NOAA Weather Wire Services (NWWS) headers as shown in the following table:

  WMO NWWS
Southwest and Tropical
North Atlantic and Caribbean
FZNT23 KNHC MIAOFFNT3
Gulf of Mexico Forecast FZNT24 KNHC MIAOFFNT4

Offshore waters products are issued on a regular six hourly schedule as shown below:

  Issuance Time
MIAOFFNT3
MIAOFFNT4
430 AM EST
(530 AM EDT)
1030 AM EST
(1130 AM EDT)
430 PM EST
(530 PM EDT)
1030 PM EST
1130 PM EDT)

See table for the latest Offshore Waters Forecast


NAVTEX (Navigational Telex) Marine Forecasts

Purpose

The International Maritime Organization has designated NAVTEX as the primary means for transmitting coastal urgent marine safety information to ships worldwide. In the United States, NAVTEX is broadcast from Coast Guard facilities in Cape Cod, MA; Chesapeake, VA; Savannah, GA; Miami, FL; New Orleans, LA; San Juan, PR; Cambria, CA; Pt. Reyes, CA; Astoria, OR; Kodiak, AK; Honolulu, HI and Guam. The Coast Guard began operating NAVTEX from Boston in 1983.

NAVTEX coverage is reasonably continuous along the east, west and Gulf coasts of the United States, as well the area around Kodiak, Alaska; Guam and Puerto Rico. The U.S. has no coverage in the Great Lakes, though coverage of much of the Lakes is provided by the Canadian Coast Guard.

Content

NHC/TAFB is responsible for producing three NAVTEX forecasts transmitted from New Orleans, Miami, and San Juan. The broadcast includes a synopsis which describes surface weather features that may cause significant winds and seas over the forecast area during the forecast period. The synopsis identifies major weather systems and the strength, trend, and movement of each system. The most detail is focused in the first 48 hours of the forecast. The synopsis also includes tropical cyclone forecast positions out to 120 hours.

The NAVTEX provides a forecast for winds and seas over the affected area for roughly the next 5 days. The forecast also includes significant weather which would pose a hazard to navigation, such as precipitation or restrictions to visibility. Warnings are issued when conditions are expected to meet the specific warning criteria during the 36 hours of the forecast.

NAVTEX forecasts are similar to the Offshore Waters Forecasts, but differ in some in important aspects. Since the NAVTEX zones were designed to accommodate the listening area of their respective transmitters, they are configured differently than the more comprehensive Offshore Waters Forecast zones. The content of both forecasts relates to the same weather elements, covering similar areas, over the same times. However, the NAVTEX forecast differ from the Offshore Waters Forecast in that the NAVTEX zones include coastal areas within 60 nm of the shore, whereas the Offshore Waters Forecasts do not. NAVTEX forecast are required to be less than 89 lines, sometimes limiting the amount of detail that can be included. While Offshore Waters Forecasts are concise, there is no similar limitation to text length. Thus, NAVTEX forecast tend to be of a lower resolution than the Offshore Waters Forecasts. This can result in slight difference in wording between the two products. Warning information will be exactly the same for each forecast, however.

Coverage

Each of the three NAVTEX forecasts produced by NHC/TAFB are described below, along with a map displaying each forecast area: TAFB issues three separate NAVTEX Forecasts, as shown below with the following AWIPS/WMO headers:

Transmitter Product Identifiers Description of Area
Miami, FL FZNT25 KNHC, MIAOFFN04 Flagler Beach, FL to Suwanne River, FL out 200 nm
San Juan, PR FZNT26 KNHC, MIAOFFN05 200 nm surrounding San Juan, PR
New Orleans, LA FZNT27 KNHC, MIAOFFN06 Suwanee River, FL to Rio Grande out 200 nm

[map of NAVTEX Area of Responsibility]

Issuance/Transmission

NAVTEX is an international automated medium frequency (518 kHz) direct-printing service for delivery of navigational and meteorological warnings and forecasts, as well as urgent marine safety information to ships. It was developed to provide a low-cost, simple, and automated means of receiving this information aboard ships at sea within approximately 200 nautical miles of shore. NAVTEX stations in the U.S. are operated by the U.S. Coast Guard. There are no user fees associated with receiving NAVTEX broadcasts. Within the U.S., there are no current plans to broadcast NAVTEX on the alternate designated frequencies of 490 or 4209.5 kHz.

NAVTEX is a major element of the Global Marine and Distress Safety System (GMDSS). For further information on NAVTEX, the GMDSS, and worldwide NAVTEX schedules, including coverage diagrams, visit the U.S. Coast Guard Maritime Telecommunications Information webpage. Daily issuance times (in UTC) for each broadcast are 0345, 0945, 1545, and 2145.

See table for the latest NAVTEX Marine Forecasts


High Frequency (HF) Voice Broadcasts - VOBRA

[map of VOBRA Area of Responsibility]

Purpose

The U.S. Coast Guard provides basic weather information from the National Weather Service in the form of routine High Frequency voice broadcasts (also known as "VOBRA") in order to provide service to vessels operating in areas beyond the range of coastal NOAA Weather Radio stations. This information is prepared cooperatively by the Ocean Prediction Center, National Hurricane Center and Honolulu Forecast Office.

Content

There are two Offshore Waters Forecast provided by the NHC/TAFB. The MIAOFFNT3 (WMO header FZNT23 KNHC) covers the Caribbean Sea, and portions of the Atlantic Ocean south of 31° North and west of 55° West. The MIAOFFNT4 (WMO header FZNT24 KNHC) encompasses the Gulf of Mexico.

The two VOBRA forecasts provide mariners with a general overview of large scale environmental marine conditions out five days, to include winds, seas, and major weather impacts. Marine warnings such as gale warnings or warnings for tropical storms or hurricanes will be headlined for each affected zone through the first 36 hours of the forecast period. In addition, brief, plain-language synopses are included in the forecast for the Gulf of Mexico, the Caribbean Sea and Tropical Atlantic, and the Southwest North Atlantic areas.

Winds represent predominant conditions at 10 meters above the surface of the water. Wind direction is described by the eight points of the compass.

Sea state is described in terms of .significant wave height. which is defined in the NWS Glossary as .the mean or average height of the highest one third of all waves in a swell train or in a wave generating region. It approximates the value an experienced observer would report if visually estimating sea height.. Seas will typically be expressed in terms of a range (e.g. 2 to 4 ft). This is to represent uncertainty in the forecast, especially considering the large areas of each marine zone. In fact, it is important to emphasize that there is a broad spectrum of wave heights at any given time in any part of the ocean, and individual wave heights may be twice the significant wave height. Unlike the Offshore Waters Forecasts, the VOBRA forecasts do not include swell information. This is due the limited broadcast times available.

The VOBRA forecasts also include weather impacts whenever they are expected to pose a danger to navigation. This may be in the form of widespread areas of fog, smoke, or volcanic ash that limit visibility, or large clusters of moderate to strong thunderstorms.

Coverage

TAFB issues two VOBRA text forecasts, as shown below with the following AWIPS/WMO headers:

AWIPS/WMO Identifiers

Identifiers Description of Area
FZNT31 KNHC/MIAOFFN20 Caribbean Sea and portions of the Western Atlantic Ocean South of 31° North
FZNT32 KNHC/MIAOFFN21 Gulf of Mexico

AWIPS Header MIAOFFN20 - WMO Header FZNT31 KNHC

Area of coverage: Caribbean Sea, Southwest North Atlantic (south of 31°North and west of 65° West) and the Tropical North Atlantic (from 07°North to 19°North west of 55°West) and includes the following combination of the offshore waters zones in the Caribbean Sea and Tropical North Atlantic Ocean

  1. NW Caribbean W of 85W
  2. Caribbean N of 15N between 72W and 85W
  3. Caribbean from 11N to 15N W of 70W
  4. SW Caribbean S of 11N
  5. Caribbean between 64W and 72W
  6. Offshore Leeward Islands and adjacent Atlantic waters from 15N to 19N W of 55W
  7. Offshore Windward Islands and adjacent Atlantic waters from 07N to 15N W of 55W

and the southwest North Atlantic

  1. Atlantic waters from 27N to 31N W of 77W
  2. Atlantic waters from 27N to 31N between 65W and 77W
  3. Bahamas N of 22N
  4. Atlantic waters from 22N to 27N between 65W and the Bahamas
  5. Atlantic waters S of 22N W of 65W
  6. Atlantic waters from 19N to 22N between 55W and 65W

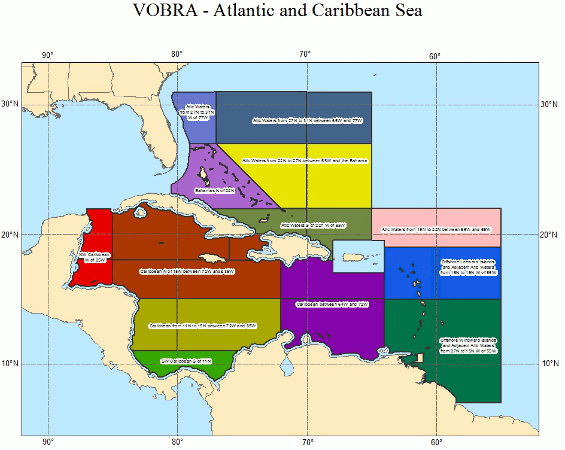

[map of VOBRA Atlantic/Caribbean Area of Responsibility]

Combination of offshore zones for the MIAOFFN20 VOBRA text product.

AWIPS Header MIAOFFN21 - WMO Header FZNT32 KNHC

Area of coverage: Gulf of Mexico and includes the following combination of the offshore waters zones in the Gulf of Mexico Portions of Offshore Waters Forecasts parsed into the Broadcast:

  1. Gulf of Mexico N of 26N W of 87W
  2. Gulf of Mexico from 22N to 26N W of 87W
  3. Gulf of Mexico S of 22N W of 87W
  4. Gulf of Mexico E of 87W

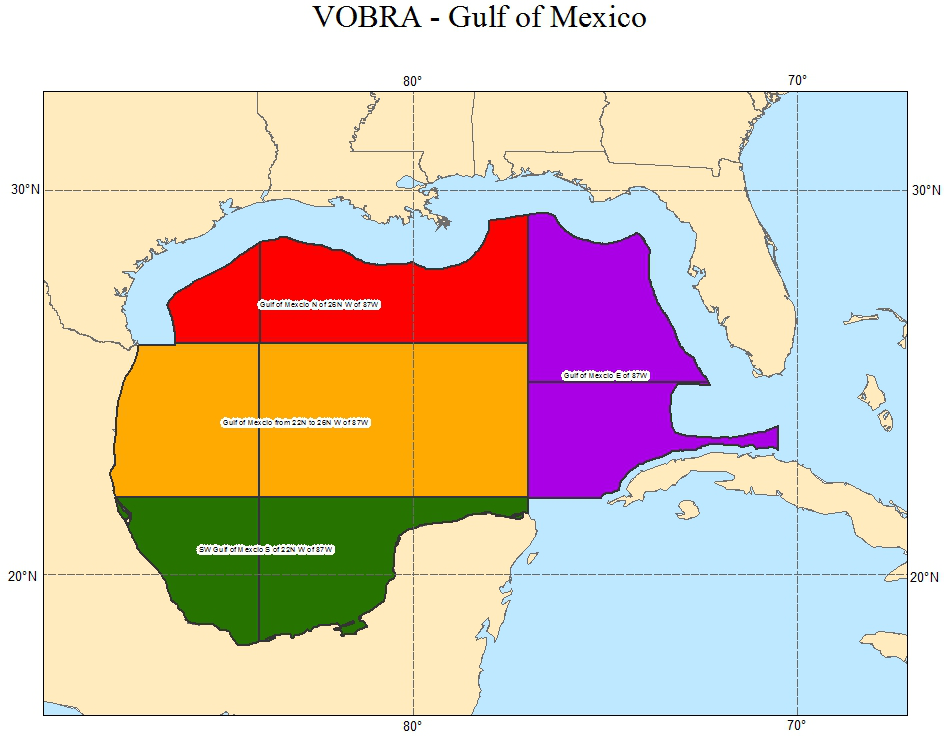

[map of VOBRA Gulf of Mexico Area of Responsibility]

Combination of offshore zones for the MIAOFFN21 VOBRA text product.

Issuance/Transmission

The transmissions originate from six sites located around the country and the transmission range is dependent upon operating frequency, time of day and atmospheric conditions and can vary from only short distances to several thousand miles. Best reception can be achieved by proper selection of frequency and an adequate antenna system. HF Voice Broadcasts covering TAFB's marine area of responsibility are conducted by the USCG from transmitter sites in Chesapeake, VA, and (New Orleans) Belle Chase, LA. See table below for station broadcast schedules.

HF Voice Broadcast Schedule

Zone forecast broadcast times indicated by orange shading. High Seas forecast broadcast times indicated by unshaded times.

Chesapeake (NMN)

Frequency Time (UTC)
4426, 6501, 8764 kHz (USB) 0330 0515 0930
6501, 8764, 13089 kHz (USB)       1115 1530   2130 2315
8764, 13089, 17314 kHz (USB)           1715

New Orleans (NMG)

Frequency Time (UTC)
4316, 8502, 12788 kHz (USB) 0330 0515 0930 1115 1530 1715 2130 2315

See table for the latest HF Voice Broadcasts


Marine Weather Discussion

[map of Marine Weather Discussion Area of Responsibility]

Purpose

The Marine Weather Discussion is a semi-technical product, analogous to the Area Forecast Discussion (AFD) issued by the local National Weather Service Forecast Offices, primarily used as a means to explain the scientific rationale behind the Offshore Waters Forecast and to summarize the warnings in effect. The Marine Weather Discussion is used to convey forecast and warning information to federal agencies, weather-sensitive officials, and the media. Part of this goal is to enhance coordination with the coastal Weather Forecast Offices.

Content

The Marine Weather Discussion describes synoptic and mesoscale features expected to affect areas in and adjacent to the offshore waters of the Gulf of Mexico, Caribbean Sea, and Southwest and Tropical North Atlantic Ocean. The narrative describes weather, wind speed, and seas with primary focus on the next 48 hours. The product emphasizes timing and issuance of warnings, includes future trends of wind and sea conditions, discusses the effects of currents such as the Gulf Stream on winds and seas, and addresses how the latest computer model guidance is handling features of significance to the mariner.

Coverage

The National Hurricane Center issues one Marine Weather Discussion to convey forecast reasoning over both its offshore forecast areas. This area includes the Gulf of Mexico, the Caribbean Sea, the Tropical North Atlantic, and the Southwest North Atlantic Ocean south of 31°N west of 55°W. The area between 55°W and 65°W is not specifically covered by the Offshore Waters Forecast products, but conditions in this area are discussed since they often affect the offshore waters in the future.

Issuance/Transmission

The Marine Weather Discussion is transmitted under World Meteorological Organization (WMO) and NOAA Weather Wire Services (NWWS) headers as shown below:

  WMO NWWS
Marine Weather Discussion AGXX40 KNHC MIAMIMATS

In general, the Marine Weather Discussion is issued twice a day (with updates as needed) shortly before the issuance of the scheduled Offshore Waters Forecast products. Forecasters will issue a brief discussion to provide information of an impending offshore forecast update. The scheduled transmission times are shown below:


  Issuance Time
MIAMIMATS by 230 AM EST
(330 AM EDT)
by 230 PM EST
(330 PM EDT)

See table for the latest Marine Weather Discussion


Pan-American Temperature and Precipitation Table

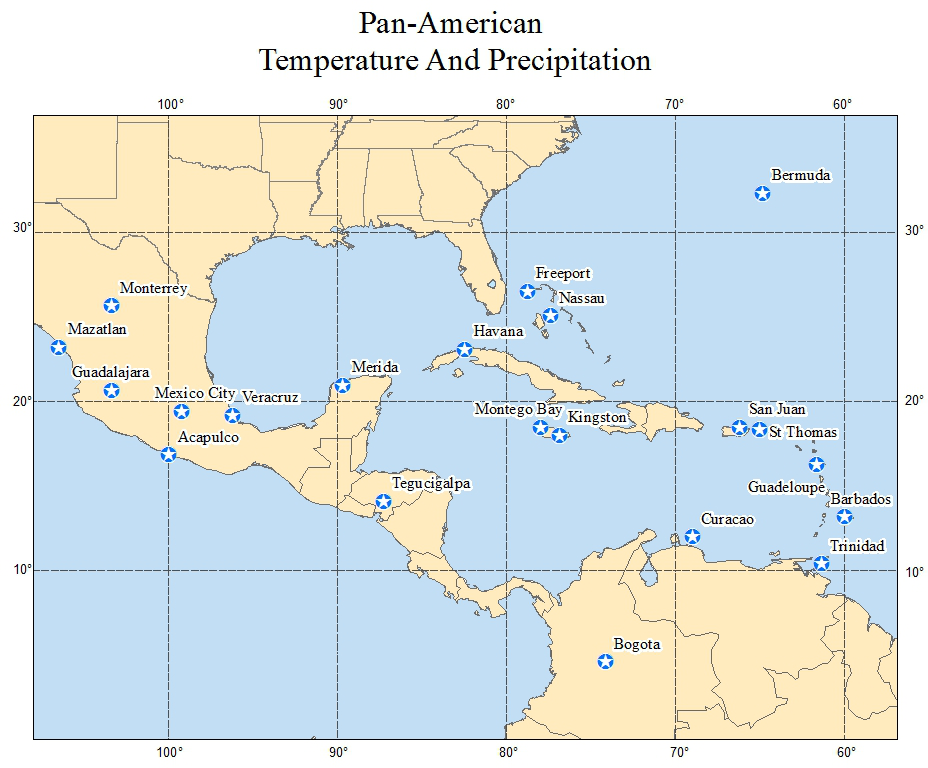

[map of Pan American Temperature and Precipitation Table Stations]

Purpose

The Pan-American Temperature and Precipitation Table is a collection of temperature and precipitation data and present weather for selected cities in Mexico, Central and South America, and the Caribbean area. It provides general weather conditions two times per day for general public use domestically and internationally.

Content

This product provides general weather conditions, high and low temperatures in degrees Fahrenheit (°F) and degrees Celsius (°C), and measured precipitation in the previous 6, 12, or 24 hours, as indicated, for selected cities in Mexico, Central and South America, and the Caribbean area. The morning product contains the low temperature for the current day and the high temperature for the previous day. The evening product contains the low and high temperature for the current day.

Coverage

The Pan-American Temperature and Precipitation Table includes the following stations (as shown in the map above):

Acapulco, MexioMerida, Mexico
BarbadosMexico City, Mexico
BermudaMontego Bay, Jamaica
Bogotá, ColombiaMonterrey, Mexico
Curaçao, Netherlands AntillesNassau, Bahamas
Freeport, BahamasSan Juan, Puerto Rico
Guadalajara, MexicoSt. Thomas, Virgin Islands
GuadeloupeTegucigalpa, Honduras
Havana, CubaTrinidad
Kingston, JamaicaVeracruz, Mexico
Mazatlán, Mexico

Issuance/Transmission

The Pan-American Temperature and Precipitation Table is transmitted under World Meteorological Organization (WMO) and NOAA Weather Wire Services (NWWS) headers as shown below:

  WMO NWWS
Pan-Am Table SXCA01 KNHC MIATPTPAN


  Valid Time Issuance Time
Morning MIATPTPAN 700 AM EST
(800 AM EDT)
by 950 AM EST
(1050 AM EDT)
Evening MIATPTPAN 700 PM EST
(800 PM EDT)
by 950 PM EST
(1050 PM EDT)

See table for the latest Pan-American Temperature and Precipitation Table


Satellite Rainfall Estimates (DISCONTINUED 30 JULY 2013)

[map of Satellite Rainfall Estimates Area of Responsibility]

Purpose

Satellite rainfall estimates are provided for tropical cyclones or other significant convective systems (mainly in the tropics) when these systems threaten land. The product is issued when convection systems are affecting the WMO RA-IV area. The product is also issued when system affect the west coast of Mexico. These estimates are based on geostationary infrared satellite imagery using a method called the Woodley-Griffith Technique.

Content

The satellite rainfall estimate product provides an estimate of the maximum rainfall based on the last four geostationary satellite images six hours apart (24 hours), as well as the estimated maximum rainfall based on the latest geostationary satellite image. The product also provides a rainfall distribution within 4° (240 nautical miles) to the left and right of the observed system motion in 1° (60 nautical miles) increments.

Coverage

One of three satellite rainfall estimate products is issued for each convective system affecting or expected to affect land based on the system.s initial location:

  1. Eastern Caribbean (areas between 40°W and 67°W)
  2. Central Caribbean (areas between 67°W and 80°W)
  3. Western Caribbean / Mexico (areas between 80°W and 120°W)

Issuance/Transmission

The Satellite Tropical Disturbance Rainfall Estimate product is transmitted under World Meteorological Organization (WMO) and NOAA Weather Wire Services (NWWS) headers as shown below:

  WMO NWWS
Eastern Caribbean TCCA21 KNHC MIASTDECA
Central Caribbean TCCA22 KNHC MIASTDCCA
Western Caribbean / Mexico TCCA23 KNHC MIASTDWCA

The product is issued four times a day as needed near the synoptic times of 0000, 0600, 1200, and 1800 UTC. The exact issuance time is based on the time of the last satellite image used.

See table for the latest Satellite Rainfall Estimates


Tropical Surface Analysis / NWS Unified Surface Analysis

example surface analysis map

Purpose

The Tropical Surface Analysis is created every six hours to depict the current state of atmosphere, specifically the sea level pressure field and any relevant synoptic surface features. The Tropical Surface Analysis is attached to surface analyses over North America, the North Atlantic Ocean, the North Pacific Ocean, and the Western Pacific Ocean to create the National Weather Service Unified Surface Analysis.

Content

The Tropical Surface Analysis and NWS Unified Surface Analysis depict the sea level pressure field by showing lines of equal pressure, usually in increments of four millibars (mb) but often in increments of two millibars where the pressure gradient is weaker (especially in the tropics). The analysis also depicts important surface features that affect the weather, including areas of high and low pressure, frontal systems (cold, warm, stationary, and occluded), troughs, tropical cyclones, tropical waves, the Intertropical Convergence Zone (ITCZ), drylines, and squall lines.

Coverage

The Tropical Surface Analysis is created by the National Hurricane Center and covers the area approximately from 30°N to 20°S between 0° and 140°W. This area includes the tropical and subtropical areas of the Atlantic and East Pacific Oceans, Mexico, Florida, the Caribbean, South America, and West Africa. For radiofax purposes, the analysis is split into three different areas:

  1. Atlantic (East Half from 5°S to 50°N between 0° and 70°W)
  2. Atlantic (West Half from 5°S to 50°N between 55°W and 125°W)
  3. Eastern Pacific (from 20°S to 40°N between 70°W and 150°W)

The NWS Unified Surface Analysis is created by merging the separate surface analysis produced by the National Hurricane Center, the Weather Prediction Center, the Ocean Prediction Center, and the Honolulu Weather Forecast Office. The total area spans from the equator northward nearly to the North Pole, from 20°E westward to 130°W. This covers the area from Europe and Central Africa westward across North and South America to East Asia.

Issuance/Transmission

The Tropical Surface Analysis is transmitted by radiofax via New Orleans, Pt. Reyes, and Honolulu according to the following table:

  New Orleans, LA
(East Half)
New Orleans, LA
(West Half)
Pt. Reyes, CA Honolulu, HI
Valid
Time (UTC)
Transmit
Time (UTC)
Filename Transmit
Time (UTC)
Filename Transmit
Time (UTC)
Filename Transmit
Time (UTC)
Filename
0000 0620 PYEA86.TIF 0605 PYEB86.TIF 0408 PYFA96.TIF 0356 PYFA96.TIF
0600 1220 PYEA87.TIF 1205 PYEB87.TIF 0945 PYFA97.TIF 0954 PYFA97.TIF
1200 1820 PYEA85.TIF 1805 PYEB85.TIF 1608 PYFA98.TIF 1556 PYFA98.TIF
1800 0020 PYEA88.TIF 0005 PYEB88.TIF 2150 PYFA99.TIF 2154 PYFA99.TIF
latest   PYEA11.TIF   PYEB11.TIF   PYFA90.TIF   PYFA90.TIF

The analyses are also updated on the NHC webpage by 0300, 0900, 1500, and 2100 UTC for the 0000, 0600, 1200, and 1800 UTC surface analyses, respectively.

See table for the latest Tropical Surface Analysis


Significant Wave Height Analysis

example of Eastern Pacific significant wave height map example of Eastern Pacific significant wave height map

Purpose

The Significant Wave Height Analysis is created every 12 hours, at 0000 and 1200 UTC, to depict the current significant wave height and primary swell direction field over the tropical and subtropical Atlantic and East Pacific waters.

Content

The significant wave height is contoured at intervals of three feet, with additional contours added if necessary in areas of little spatial variation. The significant wave height is defined as the average height of the highest 1/3 of the waves (individual waves may be more than twice the significant wave height). Maximum and minimum significant wave height values are indicated as necessary. Arrows are also depicted showing the primary swell direction at specific points.

Coverage

The National Hurricane Center produces two separate significant wave height analyses twice a day:

  1. Atlantic (from the equator to 31°N between 35°W and 100°W, including the Pacific east of 100°W)
  2. East Pacific (from 20°S to 30°N east of 145°W)

Issuance/Transmission

  New Orleans, LA Pt. Reyes, CA Honolulu, HI
Valid
Time (UTC)
Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename
0000 0215 PJEA88.TIF 0205 PKFA88.TIF 0240 PKFA88.TIF
1200 1415 PJEA90.TIF 1425 PKFA89.TIF 1440 PKFA89.TIF
latest   PJEA11.TIF   PKFA10.TIF   PKFA10.TIF

See table for the latest Significant Wave Height Analysis


Tropical Cyclone Danger Graphic (Mariner's 1-2-3 Rule)

[example of Eastern Pacific Danger Graphic] [example of Atlantic Danger Graphic]

Purpose

The tropical cyclone danger graphic is intended to depict the forecast track and corresponding area of avoidance for all active tropical cyclones and to depict areas for which tropical cyclone formation is possible within the next 36 hours over the Atlantic and East Pacific waters between May 15 and November 30.

Content

The 3-day forecast track of each active tropical cyclone is depicted along with a shaded "danger" region, or area of avoidance. The danger area is determined by adding 100, 200, and 300 nautical miles to the tropical storm force radii (34 knots) at the 24-, 48-, and 72-hour forecast positions, respectively (hence the Mariner's 1-2-3 rule). Users operating in the vicinity of these systems are advised to continually monitor the latest forecasts and advisories issued by the National Hurricane Center. Areas are also shaded for systems in which NHC forecasters believe there is an adequate chance of tropical cyclone formation within the next 48 hours.

Coverage

The National Hurricane Center produces tropical cyclone danger graphics covering the following areas:

  1. Atlantic (from the equator to 60°N between 0° and 100°W, including the Pacific east of 100°W)
  2. East and Central Pacific (from the equator to 40°N between 80°W and 175°W, including the Gulf of Mexico and Western Caribbean)

Issuance/Transmission

The tropical cyclone danger graphics are transmitted by radiofax via Boston, New Orleans, and Pt. Reyes according to the following table:

  Boston, MA
(Atlantic)
New Orleans, LA
(Atlantic)
Pt. Reyes, CA
(East Pacific)
Valid Time
(UTC)
Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename
0300 0452 PWEK89.TIF 0735 PWEK89.TIF 0357 PWFK88.TIF
0900 1028 PWEK90.TIF 1335 PWEK90.TIF 1009 PWFK89.TIF
1500 1824 PWEK91.TIF 1935 PWEK91.TIF 1557 PWFK90.TIF
2100 2228 PWEK88.TIF 0135 PWEK88.TIF 2214 PWFK91.TIF
latest   PWEK11.TIF   PWEK11.TIF   PWFK11.TIF

See table for the latest Tropical Cyclone Danger Graphic


High Wind and Associated Seas

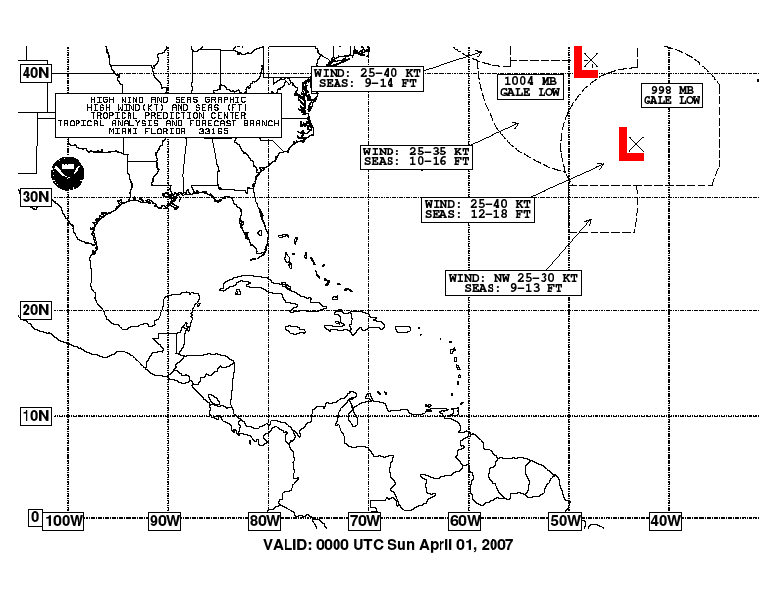

[example of East Pacific High Wind and Associated Seas Forecast] [example of Atlantic High Wind and Associated Seas Forecast]

Purpose

The high wind and associated seas graphic is produced by the National Hurricane Center to depict areas of high winds and related seas over the Atlantic and East Pacific waters between December 1 and May 14 (outside of hurricane season).

Content

Areas depicted on the high wind and seas graphic are extracted from the high seas forecasts produced by the National Hurricane Center, the Ocean Prediction Center, and the Honolulu Weather Forecast Office. South of 30°N, areas are depicted for winds higher than 25 knots with the corresponding seas noted. North of 30°N, areas are depicted for winds of gale force (34 knots) or higher with the corresponding seas noted. Ranges in which the 25/34 knot thresholds are the upper limit (i.e. 25-35 knots) are included on the graphic.

Coverage

The National Hurricane Center produces high wind and seas charts covering the following areas:

  1. Atlantic (from the equator to 40°N between 35°W and 100°W, including the Pacific east of 100°W)
  2. East Pacific (from the equator to 40°N between 80°W and 150°W)

Issuance/Transmission

The high wind and associated seas graphics are transmitted by radiofax via Boston, New Orleans, and Pt. Reyes according to the following table:

  New Orleans, LA Pt. Reyes, CA Honolulu, HI
Valid
Time(UTC)
Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename
0000 0452 PWEK89.TIF 0735 PWEK89.TIF 0357 PWFK88.TIF
06001028PWEK90.TIF1335PWEK90.TIF1009PWFK89.TIF
1200 1824 PWEK91.TIF 1935 PWEK91.TIF 1557 PWFK90.TIF
1800 2228 PWEK88.TIF 0135 PWEK88.TIF 2214 PWFK91.TIF
latest   PWEK11.TIF   PWEK11.TIF   PWFK11.TIF

See table for the latest High Wind and Associated Seas Graphic


Wind/Wave Forecasts

[small image of East Pacific wind/wave forecast] [small image of Atlantic wind/wave forecast]

Purpose

Wind/wave forecasts are produced to depict the 24-, 48-, and 72-hour forecasts of surface features, surface wind speed and direction, and significant wave heights over the tropical and subtropical Atlantic and East Pacific waters.

Content

The wind/wave forecasts include relevant surface features, including areas of high and low pressure, frontal systems (cold, warm, stationary, and occluded), troughs, ridges, tropical waves, and tropical cyclones. Wind barbs indicate the forecast wind speed and direction at specific points where long barbs indicate 10 knots and short barbs indicate 5 knots. The significant wave height is contoured at intervals of three feet, with additional contours added if necessary in areas of little spatial variation. The significant wave height is defined as the average height of the highest 1/3 of the waves (individual waves may be more than twice the significant wave height). Maximum and minimum significant wave height values are indicated as necessary.

Coverage

The National Hurricane Center produces wind/wave forecasts covering the following areas:

  1. Atlantic (from the equator to 31°°N between 35°W and 100°W, including the Pacific east of 100°W)
  2. East Pacific (from 20°S to 30°N east of 145°W)

Issuance/Transmission

The Wind/wave forecasts are transmitted by radiofax via New Orleans, Pt. Reyes, and Honolulu according to the following table:

    New Orleans, LA
(Atlantic)
Pt. Reyes, CA
(East Pacific)
Honolulu, HI
(East Pacific)
Forecast
Period
Valid
Time (UTC)
Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename
24-hour 0000 0635 PWEE89.TIF 0959 PWFE01.TIF 1008 PWFE01.TIF
1200 1835 PWEE91.TIF 2204 PWFE03.TIF 2208 PWFE03.TIF
latest   PWEE11.TIF   PWFE10.TIF   PWFE10.TIF
36-hour 1200 1350 PWED98.TIF - - - -
48-hour 0000 0645 PWEI88.TIF 1208 PWFI88.TIF 1500 PWFI88.TIF
1200 1845 PWEI89.TIF 0225 PWFI90.TIF 0300 PWFI90.TIF
latest   PWEI11.TIF   PWFI10.TIF   PWFI10.TIF
72-hour 0000 0655 PJEK88.TIF 1218 PWFK92.TIF 1510 PWFK92.TIF
1200 1855 PJEK89.TIF 0235 PWFK93.TIF 0310 PWFK93.TIF
latest   PJEK11.TIF   PWFK10.TIF   PWFK10.TIF

See table for the latest Wind/Wave Forecasts


Surface Forecasts

[Image of Surface Forecast Area for East Pacific] [Image of Surface Forecast Area for East Pacific]

Purpose

Surface forecasts are produced to depict the 24-, 48-, and 72-hour forecasts of sea level pressure and surface features over the tropical and subtropical Atlantic and East Pacific waters.

Content

The surface forecasts include the forecast sea level pressure field depicted by isobars contoured every four millibars (mb). Intermediate two millibar isobars are sometimes included in areas where the pressure gradient is relatively light. Relevant surface features are also shown, including areas of high and low pressure, frontal systems (cold, warm, stationary, and occluded), troughs, ridges, drylines, tropical waves, and tropical cyclones. The 72-hour forecast chart also includes a depiction of the 96-hour forecast positions of highs, lows, and tropical cyclones.

Coverage

The National Hurricane Center produces surface forecasts covering the following areas:

  1. Atlantic (from the equator to 31°N between 35°W and 100°W, including the Pacific east of 100°W)
  2. East Pacific (from 20°S to 30°N east of 145°W)

Issuance/Transmission

The surface forecasts are transmitted by radiofax via New Orleans and Honolulu according to the following table:

    New Orleans, LA
(Atlantic)
Honolulu, HI
(East Pacific)
Pt. Reyes, CA
(East Pacific)
Forecast
Period
Valid
Time (UTC)
Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename
24-hour 0000 0705 PYEE79.TIF 1400 PYFE79.TIF - -
1200 1905 PYEE80.TIF 0200 PYFE80.TIF - -
latest   PYEE10.TIF   PYFE10.TIF   -
48-hour   0000 0715 PYEI81.TIF 1410 PYFI81.TIF 1435 PYFI81.TIF
1200 1915 PYEI82.TIF 0210 PYFI82.TIF 0215 PYFI82.TIF
latest   PYEI10.TIF   PYFI10.TIF   -
72-hour   0000 0725 PYEK83.TIF 1420 PYFK83.TIF - -
1200 1925 PYEK84.TIF 0220 PYFK84.TIF - -
latest   PYEK10.TIF   PYFK10.TIF   -

See table for the latest Surface Forecasts


Peak Wave Period and Direction Forecasts

[Image of Peak Wave Period and Direction Forecast Area for East Pacific] [Image of Peak Wave Period and Direction Forecast Area for Atlantic]

Purpose

Peak wave period and direction forecast charts are produced to depict the 48- and 72-hour forecasts of how much time exists between the most energetic waves and what direction these waves are coming from over the tropical and subtropical Atlantic and East Pacific waters.

Content

The peak wave period (in seconds) is defined as the wave period associated with the most energetic waves in the total wave spectrum at a specific point. Wave regimes that are dominated by wind waves tend to have smaller peak wave periods, and regimes that are dominated by swell tend to have larger peak wave periods. It is important to note that these charts only depict the peak wave period and that there still could be other significant waves at a specific point that just happen to have less energy. Peak wave periods are contoured by isolating different swell events with a single line – not contouring at a specific interval as in other forecast graphics. Labels within the contours indicate the peak wave period in that general area. Arrows are also shown depicting the direction that the most energetic waves are traveling.

Coverage

The National Hurricane Center produces peak wave period and direction forecasts covering the following areas:

  1. Atlantic (from the equator to 31°N between 35°W and 100°W, including the Pacific east of 100°W)
  2. East Pacific (from 20°S to 30°N east of 145°W)

Issuance/Transmission

The peak wave period and direction forecasts are transmitted by radiofax via New Orleans, Pt. Reyes, and Honolulu according to the following table:

   New Orleans, LA
(Atlantic)
Pt. Reyes, CA
(East Pacific)
Honolulu, HI
(East Pacific)
Forecast
Period
Valid
Time(UTC)
Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename Transmission
Time (UTC)
Filename
48-hour 0000 0750 PJEI88.TIF 1228 PJFI87.TIF 1430 PJFI87.TIF
1200 1950 PJEI89.TIF 2346 PJFI88.TIF - -
latest   PJEI11.TIF   PJFI11.TIF
72-hour 00000825PKEK88.TIF2356PJFK93.TIF0230PJFK93.TIF

See table for the latest Peak Wave Period and Direction Forecasts


Experimental Graphicasts (Today's Marine Weather Story)

[small picture of example east pacific graphicast] [small picture of example atlantic graphicast]

The Tropical Analysis and Forecast Branch (TAFB) is providing a graphical weather depiction that will highlight primary weather features of interest.

A graphicast is produced for each basin. The graphicasts are intended to communicate to our users the most critical marine or other significant forecast issue(s) of the day (heavy precipitation/flooding, volcanic ash) in an effort to provide enhanced decision support services (DSS) to them.

The image has planned updates once per day in the early afternoon.

See the latest available Atlantic or East Pacific Graphicast


Tropical/Subtropical Cyclone Position and Intensity Estimates

[small picture of tropical cyclone]

TAFB provides the National Hurricane Center with position estimates of tropical cyclones every three hours and intensity estimates every six hours. Intensity estimates use the Dvorak technique, which is a statistical system using observed satellite cloud pattern and a set of rules to produce a current estimate of a cyclone's strength. Estimates can be made from both visible and infrared satellite imagery. The Dvorak technique is the main tool for determining tropical cyclone strength when it is out of range of reconnaissance aircraft.

TAFB also provides NHC with position and intensity estimates for subtropical cyclones (a hybrid between tropical cyclones and frontal or extratropical cyclones) using the Herbert-Poteat technique.

TAFB's position and intensity estimates are not currently available to the public. However, the intensity estimates (called T numbers, CI numbers, and ST numbers), are often referred to in NHC's Tropical Cyclone Discussions and Preliminary Reports. The following table (taken from the reports mentioned below) gives the approximate wind and pressure values for the CI and ST numbers.

CI
Number
Sustained
winds
Atlantic
Min. Pres.
W Pacific
Min. Pres.
ST
Number
Sustained
winds
1.025 kt
1.525 kt1.525-30 kt
2.030 kt1009 mb1000 mb
2.535 kt1005 mb997 mb2.535-40 kt
3.045 kt1000 mb991 mb3.045-50 kt
3.555 kt994 mb984 mb3.555-65 kt
4.065 kt987 mb976 mb
4.577 kt979 mb966 mb
5.090 kt970 mb954 mb
5.5102 kt960 mb941 mb
6.0115 kt948 mb927 mb
6.5127 kt935 mb914 mb
7.0140 kt921 mb898 mb
7.5155 kt906 mb879 mb
8.0170 kt890 mb858 mb

NHC uses the Atlantic pressure table for eastern Pacific tropical cyclones. Note that these are intensity estimates and may be superceded by reconnaissance and/or surface observations.

More information on the Dvorak technique is found in NOAA Technical Report NESDIS 11 - Tropical Cyclone Intensity Analysis Using Satellite Data - by Vernon F. Dvorak. More infomation on the Herbert-Poteat technique is found in NOAA Technical Memorandum NWS SR-83 - A Satellite Classification Technique for Subtropical Cyclones - by Paul J. Herbert and K.O. Poteat.

TAFB is currently testing an objective version of the Dvorak technique. This could provide intensity estimates every 30 minutes. More information can be obtained from Ray Zehr at the Cooperative Institute for Research in the Atmosphere, Colorado St. University, or from Chris Velden or Tim Olander at the Cooperative Insititute for Meteorological Satellite Studies, University of Wisconsin.

The National Hurricane Center currently does not post the Dvorak satellite intensity classifications to the website. Satellite classifications provided by the NOAA/NESDIS Satellite Services Division can be found on their website.


Marine Radiofax Broadcast Schedule

[small picture of radio towers]

The Tropical Analysis and Forecast Branch (TAFB) provides marine analyses and forecasts for the Gulf of Mexico, Caribbean Sea, and the tropical and subtropical Atlantic and Pacific. Products available include: surface analyzes, sea state analyses, wind/seas forecasts, wave period/swell direction forecasts, tropical cyclone danger area forecaasts (during the hurricane season), text High Seas Forecasts, and GOES satellite imagery. These products are transmitted through the U.S. Coast Guard Stations at New Orleans, Louisiana, and Pt. Reyes, California. These and other National Hurriane Center products are also available from the National Weather Service Marine Fax page. Here is more information on receiving NWS marine products at sea.

The complete list of radiofax broadcasts can be found on the TAFB Radiofax Broadcast Schedule page.


Experimental Gridded Marine Forecasts

[NDFD example grids]

The Tropical Analysis and Forecast Branch (TAFB) is providing on an experimental basis forecasts of gridded surface (10-m) winds, surface (10-m) wind gusts, significant wave heights, and marine hazards to the National Digital Forecast Database (NDFD). These grids are produced by the forecaster through the AWIPS Graphical Forecast Editor (GFE) and are currently experimental.

Please see the gridded marine page for more information.



Quick Navigation Links:
Tropical Cyclone Forecasts  -  Tropical Marine Forecasts  -  Data Archive
Outreach  -  Prepare  -  About Cyclones  -  About NHC  -  Contact Us

NOAA/ National Weather Service
National Centers for Environmental Prediction
National Hurricane Center
11691 SW 17th Street
Miami, Florida 33165-2149 USA
nhcwebmaster@noaa.gov
Disclaimer
Credits
Information Quality
Glossary
Privacy Policy
Freedom of Information Act (FOIA)
About Us
Career Opportunities
Page last modified: Friday, 10-Jan-2014 18:00:05 UTC
